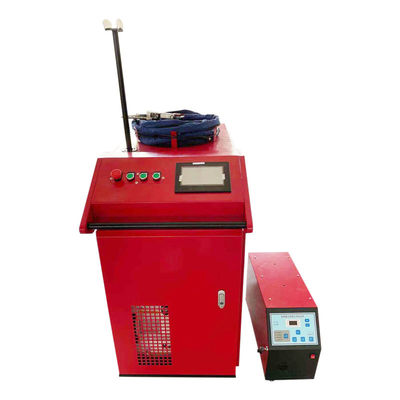

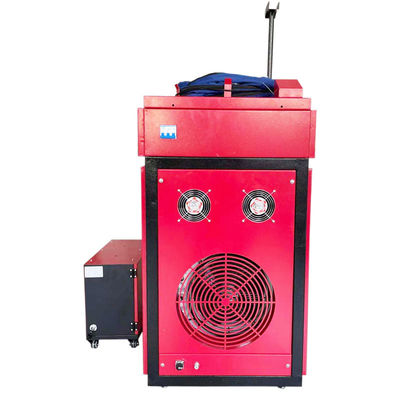

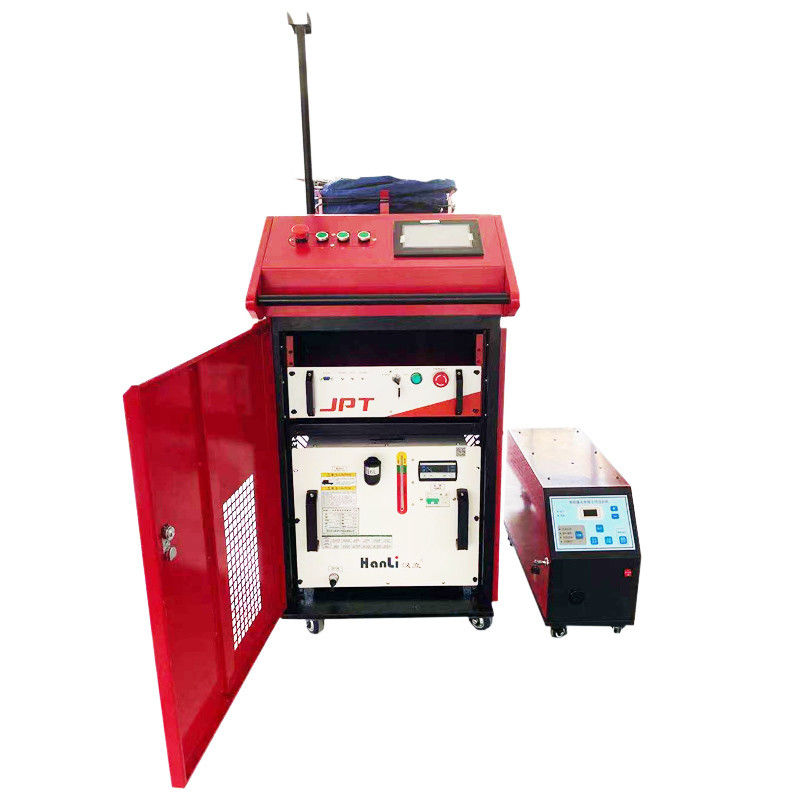

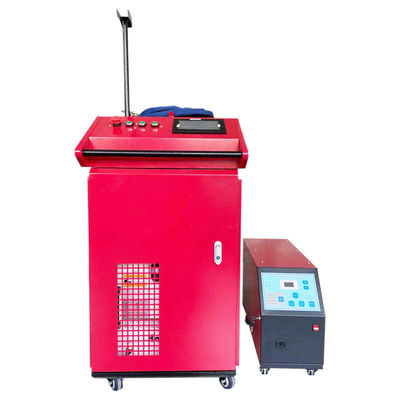

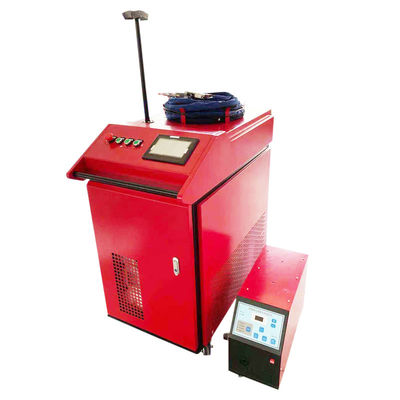

Fiber Laser Source Laser Welding Machine 1500W/3000W for High Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | Chylaser |
| Certification: | ce |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,000.00/sets 1-9 sets |
| Packaging Details: | Standard Export Wooden Packing |
| Payment Terms: | T/T, L/C, Cash |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max. Output Power: | 1000W 1500w 2000W 3000w |
|---|---|---|---|
| Use: | Fiber Laser Welding | Wavelength: | 1080nm |
| Warranty: | 2 Years | Laser Source Brand: | MAX |
| Laser Head Brand: | Precitec | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 200 KG | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction Works , Energy & Mining, Advertising Company, Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Hot Product 2021 |
| Warranty Of Core Components: | 2 Years | Core Components: | Laser Generator, Laser Welding Torch, Chilling Machine |
| Product Name: | Laser Welding Machine | Laser Power: | 1000W 1500w 2000W 3000w |
| Application Material: | Steel Aluminum Copper | Working Mode: | Hand Held |
| Welding Depth: | 0.1-2mm | Color: | Black Red |
| Function: | Metal Part Laser Welding | Feature: | Quick Speed High Accuracy |
| Laser Type: | Fiber Laser Source | Port: | Lianyungang, Shanghai |
Product Description
Product description
|
Product name
|
|
|
Model
|
HY-SCHJ-1000/1500/2000W
|
|
Laser power
|
1000/1500/2000W
|
|
Laser wavelength
|
1064nm
|
|
Spot adjustment
|
0-4mm
|
|
Work patterns
|
Continuous
|
|
Power regulation range
|
10%-100%
|
|
Power required
|
AC220V / 380V
|
|
Output fiber length
|
5/10/15m (Optional)
|
|
Cooling method
|
Water Cooling
|
|
Cooling water temperature
|
5-45℃
|
|
Laser Energy Stability
|
<2%
|
|
Air humidity
|
10-90%
|
Machine Tips
1. About Fiber Cable Length
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
3. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
usually 2 years, we have professional after sale group, 24 hour online
Products in factory
Advantage
|
|
Tig Welders
|
Laser Welders
|
|
Heat input
|
Very high heat
|
Very low calories
|
|
Deformation
|
Easy to deform
|
No deformation
|
|
Welding spot
|
Large welding spot
|
Fine welding spot, adjustable spot
|
|
Exterior
|
Unsightly, need polishing
|
Smooth and beautiful, no need to sand
|
|
Perforation
|
Easy to pierce
|
Not easy to perforate, can be controlled
|
|
Protective gas
|
Need argon
|
Need argon
|
|
Precision
|
general
|
Precision
|
|
Processing time
|
Long time
|
Short time
|
|
Safety
|
Ultraviolet light, radiation
|
Radiation-free
|
Welding Material Parameter for your reference, different materials, different welding parameters, limited by the section, directly display a part.
If You want to know more about the parameter, please contact us directly, 24 hours online
Product application
Machine Application
Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.
